Features:
-

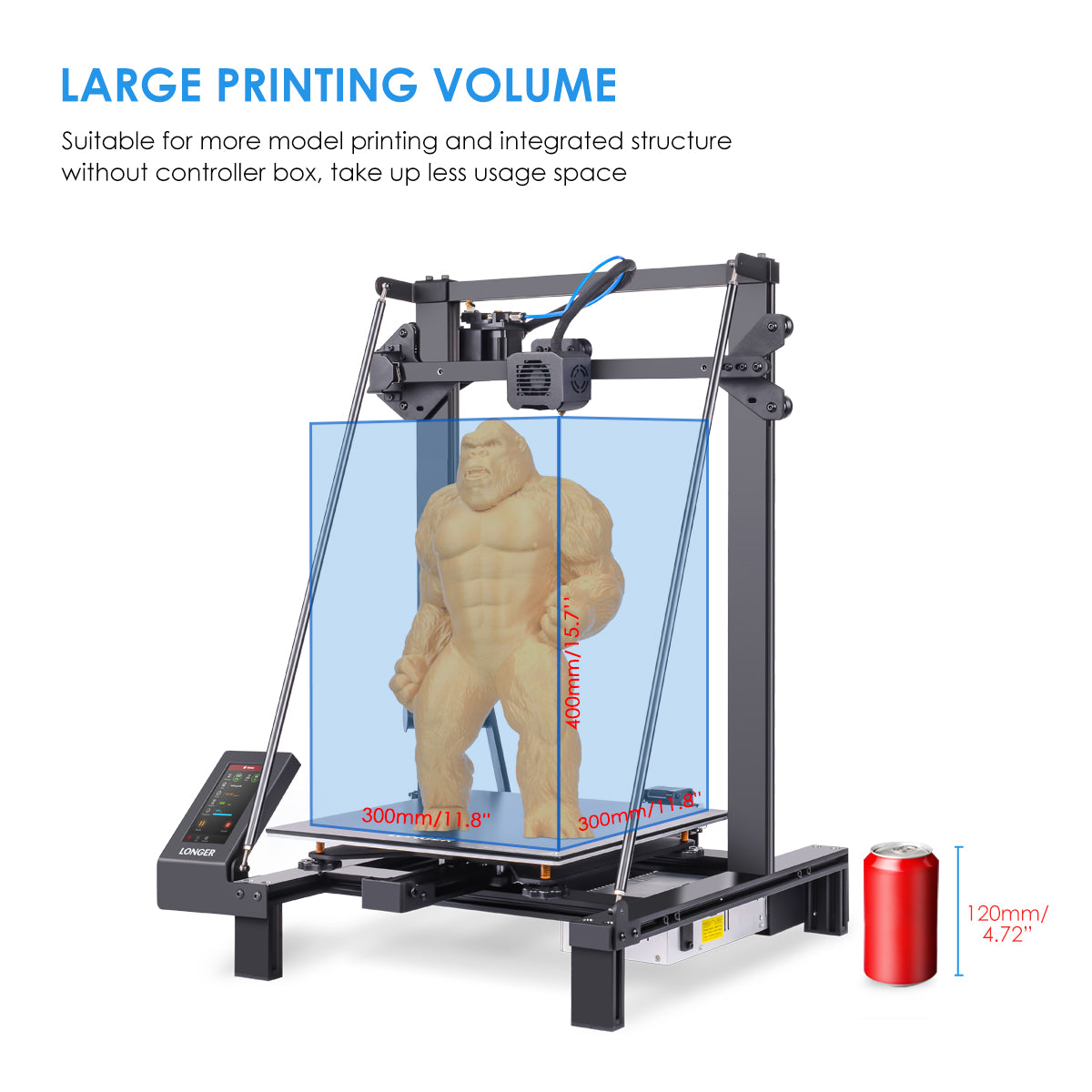

Extra-Large Build Platform. Measuring at 11.8*11.8*15.75 inches, the size of the LK5 Pro build plate goes nearly unrivaled in similar printers. The printing speed max up to 180mm/s, which makes your ideas came true quickly.
-

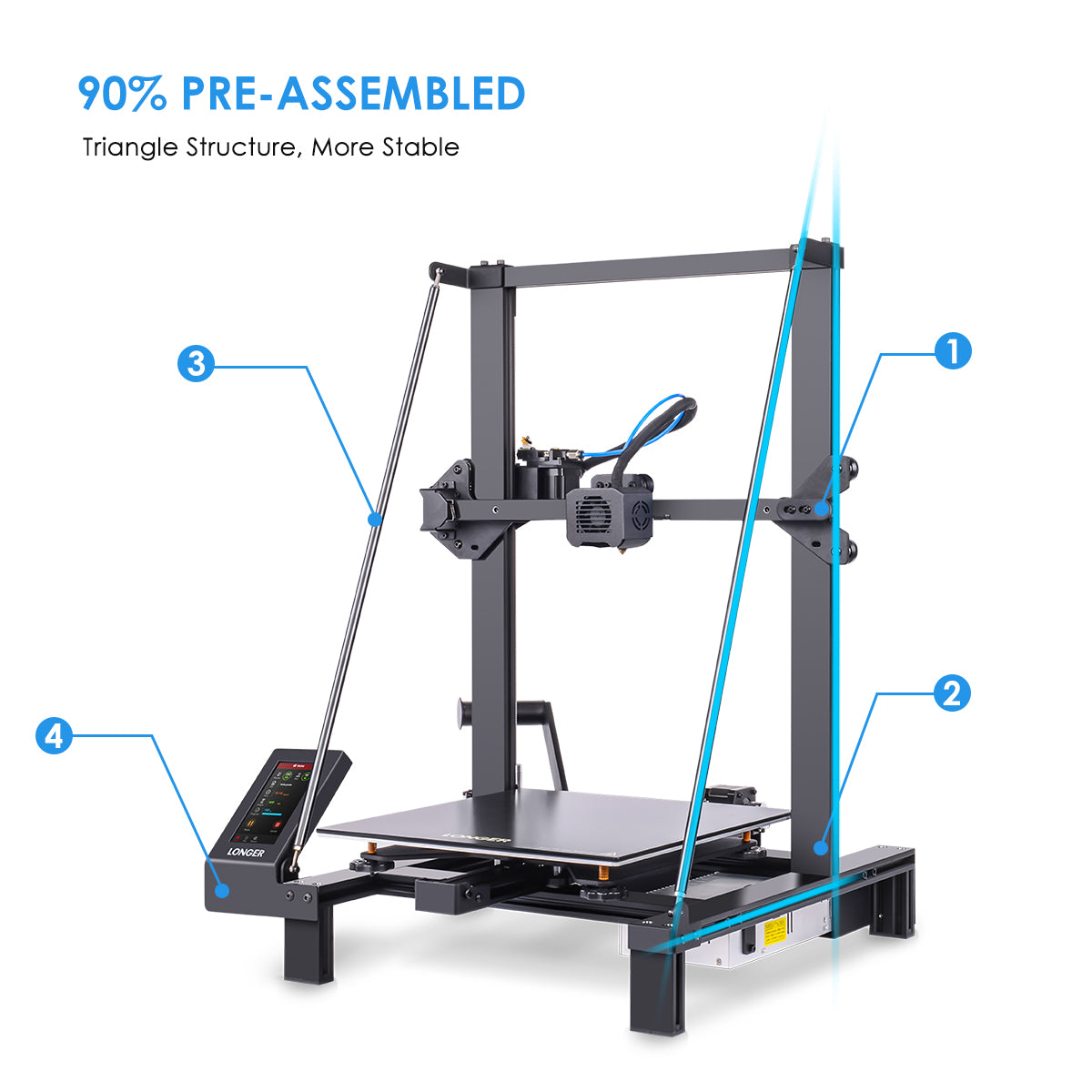

90% Pre-assembled with Stable Triangular Structure. LK5 Pro 3d printer is 90% Pre-assembled. Larger build size of 300*300*400 mm plus the reinforced design of diagonal rods form a stable triangular structure, which can effectively reduce vibration and achieve more stable printing.
-

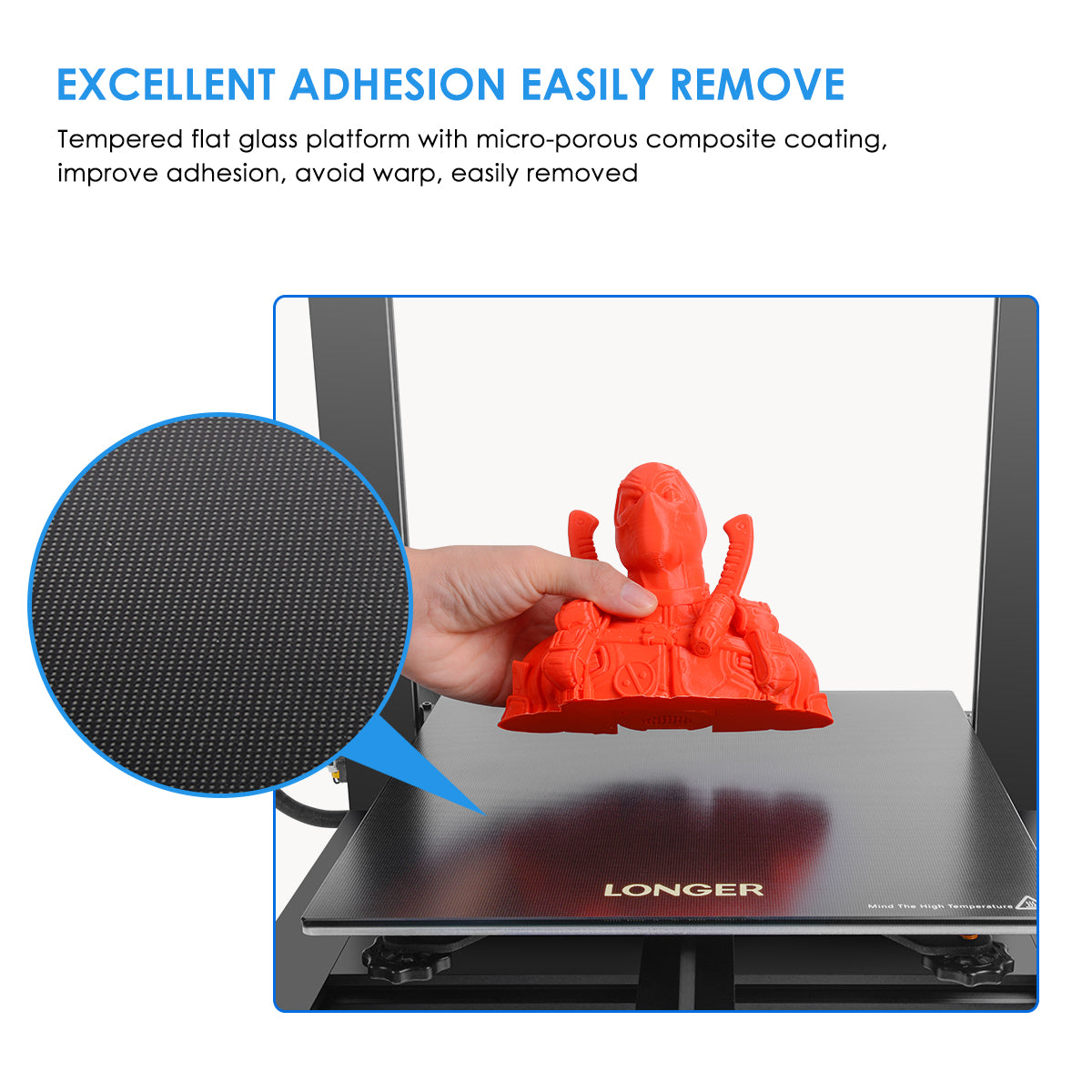

Upgraded Lattice Glass Equipped. Unlike old printing hotbed, LK5 Pro uses lattice glass plate, which has a microporous structure, which not only makes the model easier to disassemble but also makes the hotbed flatter, to provide better printing affection.
-
【High-temperature Resistant PTEF Tube】LK5 Pro 3d printer's PTEF tube can withstand high temperature which up to 280℃ (others printers are 250 ℃ in normal), is not easy to soften, and is easier to feed filaments during printing which helps to improve the printing quality and reduce nozzle clogging.

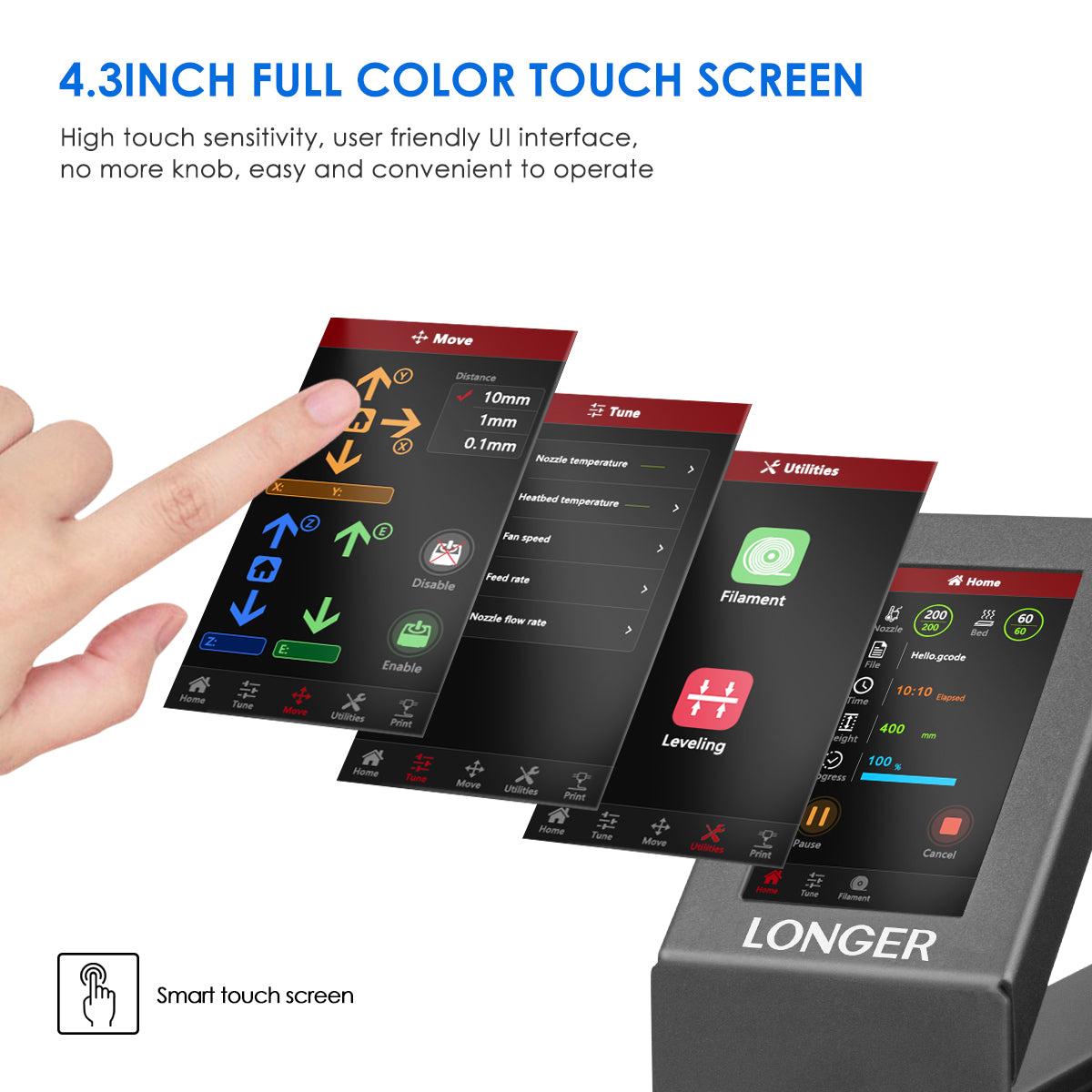

- 4.3inch Full Color Touch Screens. The 3d printer with a 4.3inch full-color touch screen, you can say goodbye to the era of manual knobs and dot-matrix display. Optimized UI interface, easy operation, you can view real-time printing information on the screen. And also larger touch size than other printers of 2.8inch.
-
Silent and Open source Motherboard.

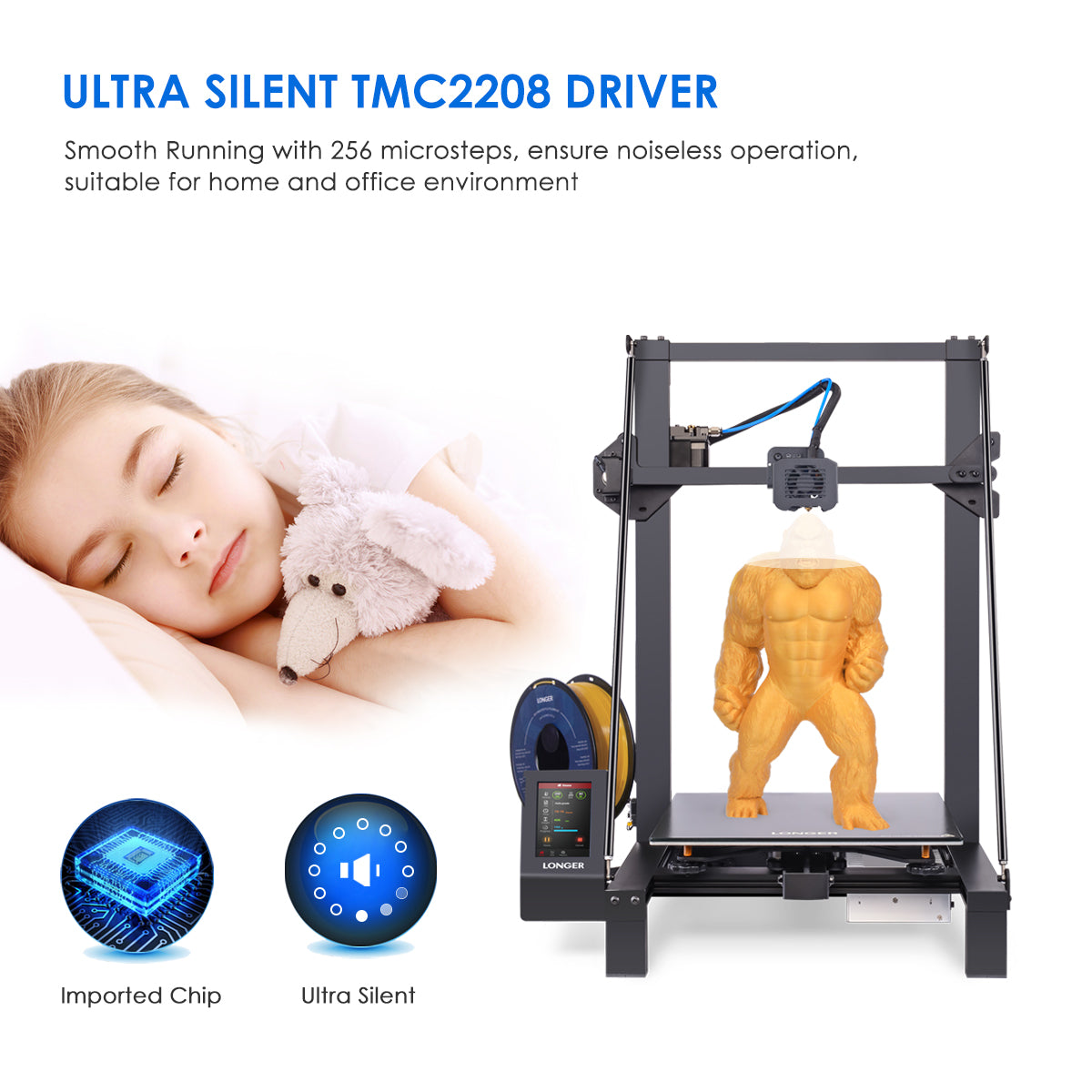

Backed by TMC2208 ultra-silent driver, it demonstrates firm properties as well as reduces noise. With open-source firmware, you can try your fantastic ideas on LK5 Pro by changing the C code. BL touch installation is also provided (not included in the package). All products Provide After Sale Quality Assurance.
- Open Sources. LK5 Pro is open source, allow users to improve printer with codes and share the changes within the community.
Specifications
|
|
MODEL |
LK5 PRO
|
Printing Technology |
FDM |
Printed Size
|
300*300*400mm (11.8"*11.8"*9.8") |
Extruder |
Single |
Nozzle Diameter |
0.4mm |
Printing Temperature |
190-250℃ |
Filament Detector |
Yes |
Resume Printing |
Yes |
Printing Speed |
≦180mm/s (Suggest 60-80mm/s) |
Layer |
0.1-0.4mm |
Slice Software |
Cura, Reptier-Host |
File Format |
G-code, stl |
Connection |
TF Card or USB Cable |
Net Weight |
12KGS |
Gross Weight |
13.5KGS |
Printer Dimension |
580*540*663mm |
Package Dimension |
662*588*193mm |
Printing Material |
1.75mm PLA/ABS/Wood |
Note: Due to the relationship of customs logistics will be detained, so the product will no longer contain U disk, SD card and TF card and other accessories.Please use the following link - download information.
Package Included:
1 x LK5 Pro 3D Printer
