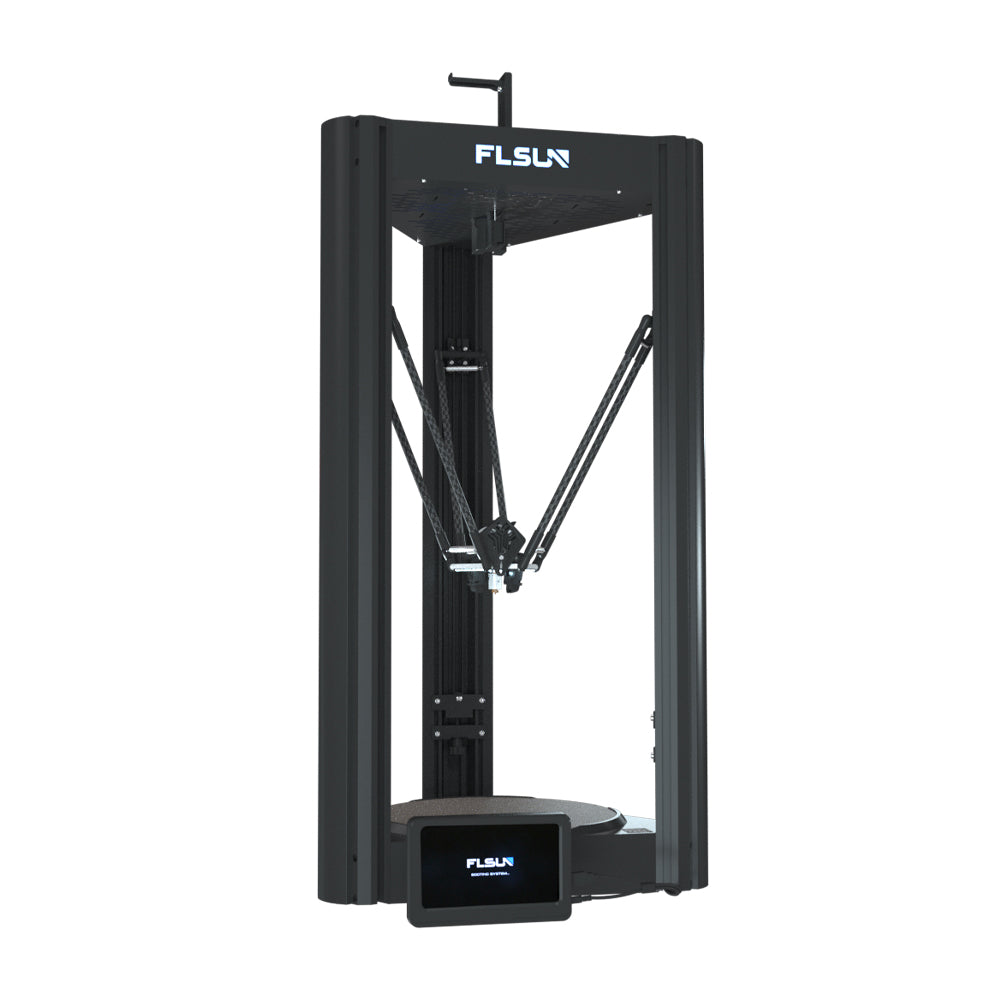

Flsun V400 3D Printer Speed King 400mm/s Fast Printing

$839.00

The EU warehouse can only ship to EU countries.
The US warehouse can only ship to the US.
The RU warehouse can only ship to the RU.
The Canada warehouse can only ship to the Canada.

SHIP FROM: US

US
EU
RU
Canada
Add to Wishlist

american expressdiners clubdiscovermasterpaypalvisa
Description
Machine parameters:
  1. Forming principle: FDM (fused lamination molding technology).
  2. Print size: 300mm*300mm*410mm
  3. Printing speed: up to 400㎜/s
  4. Number of nozzles: single nozzle.
  5. Nozzle diameter: 0.4mm (default), support 0.2mm, 0.3mm, 0.5mm, 0.6mm, 0.8mm nozzles.
  6. Consumable wire diameter: 1.75mm.
  7. Nozzle temperature: up to 300°C
  8. Hot bed temperature: up to 110°C
  9. Positioning accuracy: ±0.01mm
  10. Dimensional accuracy: ±0.15mm
  11. Printing layer thickness: 0.05-0.4mm.
  12. Movement axis speed: up to 500mm/s.
  13. Control panel: 7-inch interactive smart screen, wireless connection, web page control, APP control.
  14. Printing consumables: PLA, PETG, wood, ABS, PC, TPU, etc.
  15. Printing method: U disk offline printing, cross-terminal WEB control printing.
  16. Supporting software: Cura5.0, flsun system 1.0, support modification.
  17. Compatible file formats: STL, OBJ, AMF, G-CODE.
  18. Nozzle module: all metal hot end
  19. Extruder: short range extruder, weight 135g
  20. Equipment size: length 480* width 435* height 1090mm
  21. Equipment weight: 17kg
  22. Packing weight: 20kg
  23. Packing size: 1030mm*460mm*190mm
hardware introduction
  • 1. Double-axis wire gauge, higher accuracy when printing at high speed
  • 2. The separate magnetic PEI spring steel platform makes the first layer of printing more firmly bonded, and the model is easy to take; the hot bed can be heated up to 110°C and various materials can be printed with appropriate setting parameters.
  • 3. Pre-installed Klipper family barrels (Klipper, Moonraker, Mainsail, KlipperScreen, WebCAM, etc.), no need to configure, plug and play, free expansion, full of fun.

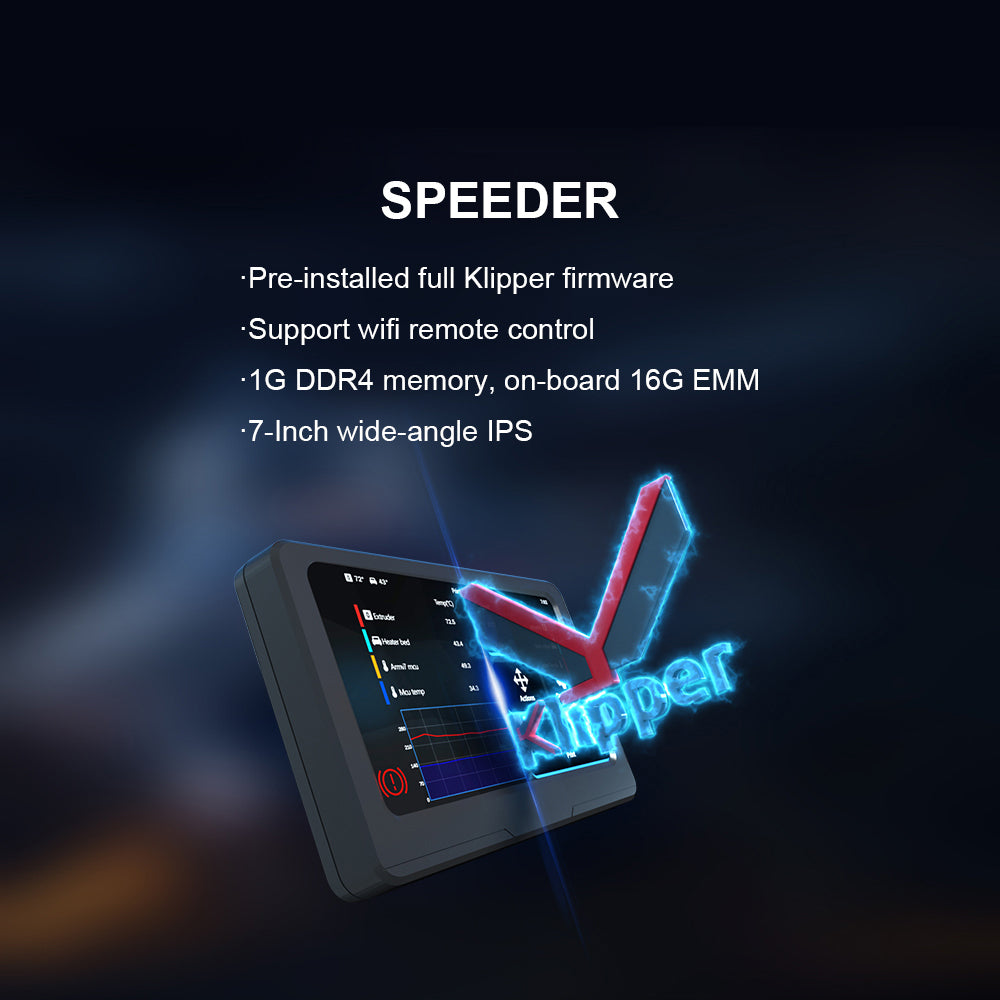

  • 4. Adopt 7-inch wide-angle IPS ultra-high-resolution interactive screen, abandon the point-and-click operation of the traditional touch screen, use the same multi-touch interaction scheme as the Apple mobile phone, and use the newly optimized KlipperScreen interface, which is simple and convenient, bringing a new intelligence Interactive experience.

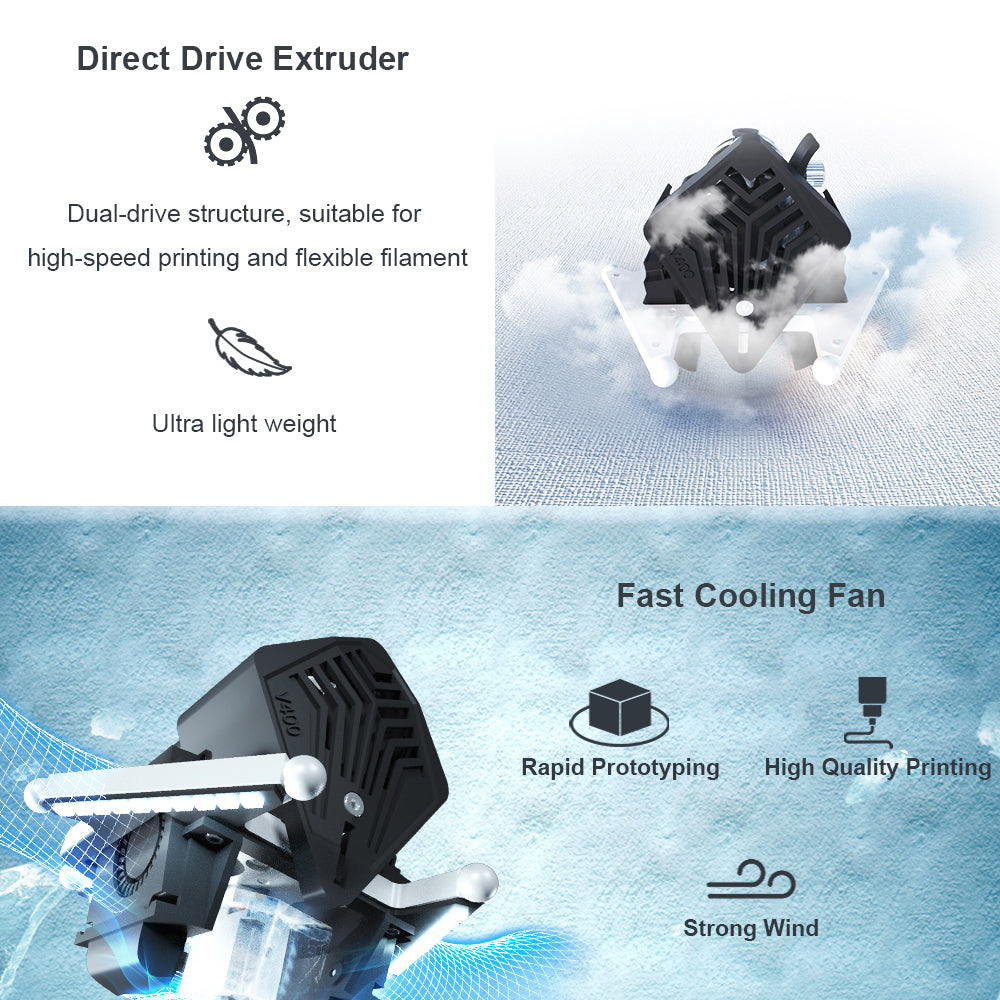

  • 5. It adopts ultra-light short-distance extruder design, and the throat adopts bimetallic structure, which can meet the high temperature printing of 300 degrees. Two double ball fan cooling systems ensure the cooling effect of the model and the life of the fan. The triangular light strip design and omnidirectional effector lighting .
  • 6. Unique mechanical arm design: use the same technology as the high-end UAV 3K grade and thickened to a high-strength carbon fiber rod with a diameter of 10mm + aviation aluminum shell + POM bearing wear-resistant material, zero-gap lightweight high-strength design, Integrate structural rigidity and positioning into one.
  • 7. It is designed with an ultra-light short-distance extruder, and the extrusion force can reach 70N to meet the high-speed printing requirements of 400mm/s. It is especially suitable for printing with flexible consumables and hard consumables such as PLA.
  • 8. Cura5.0 with optimized parameters, the slicing software includes two modes: basic mode and expert mode, to meet the printing setting requirements of novice users and professional users with different precision and difficulty; configuration of fast printing, fine printing, etc. can be called at any time.
  • 9. Self-developed leveling algorithm, through 25 points to compensate for machining errors, easily solve the problem of the first floor.
  • 10. Support material broken detection, automatically pause after the normal use of the consumables, and continue printing after replacing the consumables.
  • 11. Screen language: simplified/traditional Chinese, English, French, Russian, German, Polish, Portuguese, Danish, Spanish, Hebrew.
