ATOMSTACK A5 PRO Laser Engraving Machine

7-15 Days
$299.99
PLUG *
$299.99

Description:

  1. UpgratedUltra-fine 0.23mm*0.23mm Laser Focal Area
  2. New eye protection design
  3. 410x400mm Large Carving Area
  4. Upgraded High-quality Laser
  5. Full-metal Structure
  6. Quick Assembly Design
  7. Precise Scale Lines

Feature:

      • New eye protection design:The laser protective cover perfectly protect your eyes,filter UV light for 95%. You and the people around  can watch laser engraving without wearing goggles. Reduce the cost of your goggles and the inconvenience of wearing goggles.

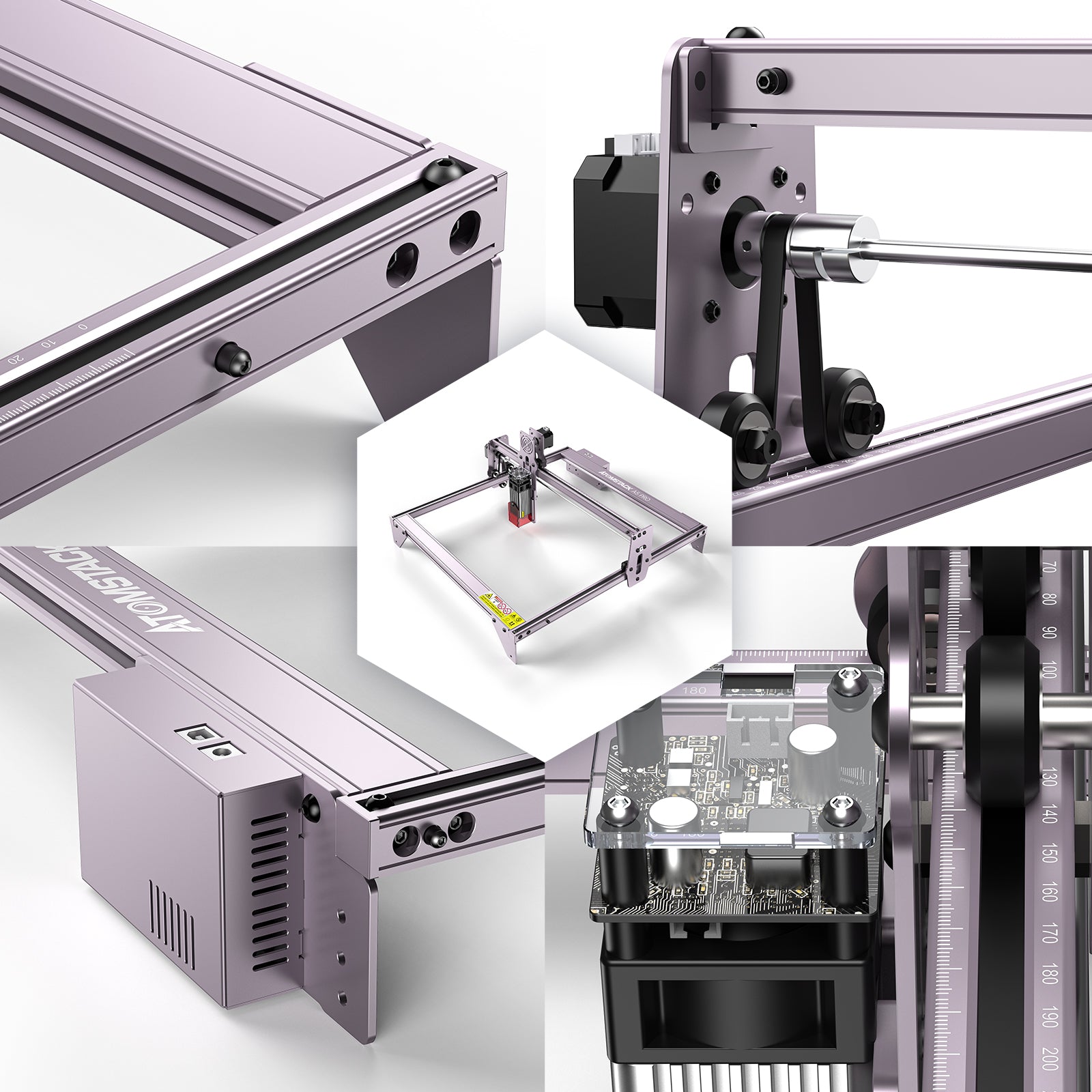

      • Solid and easy installation structure design:The full-metal structure design makes the machine more solid, it will reduce the vibration of the machine and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 10-20 minutes.

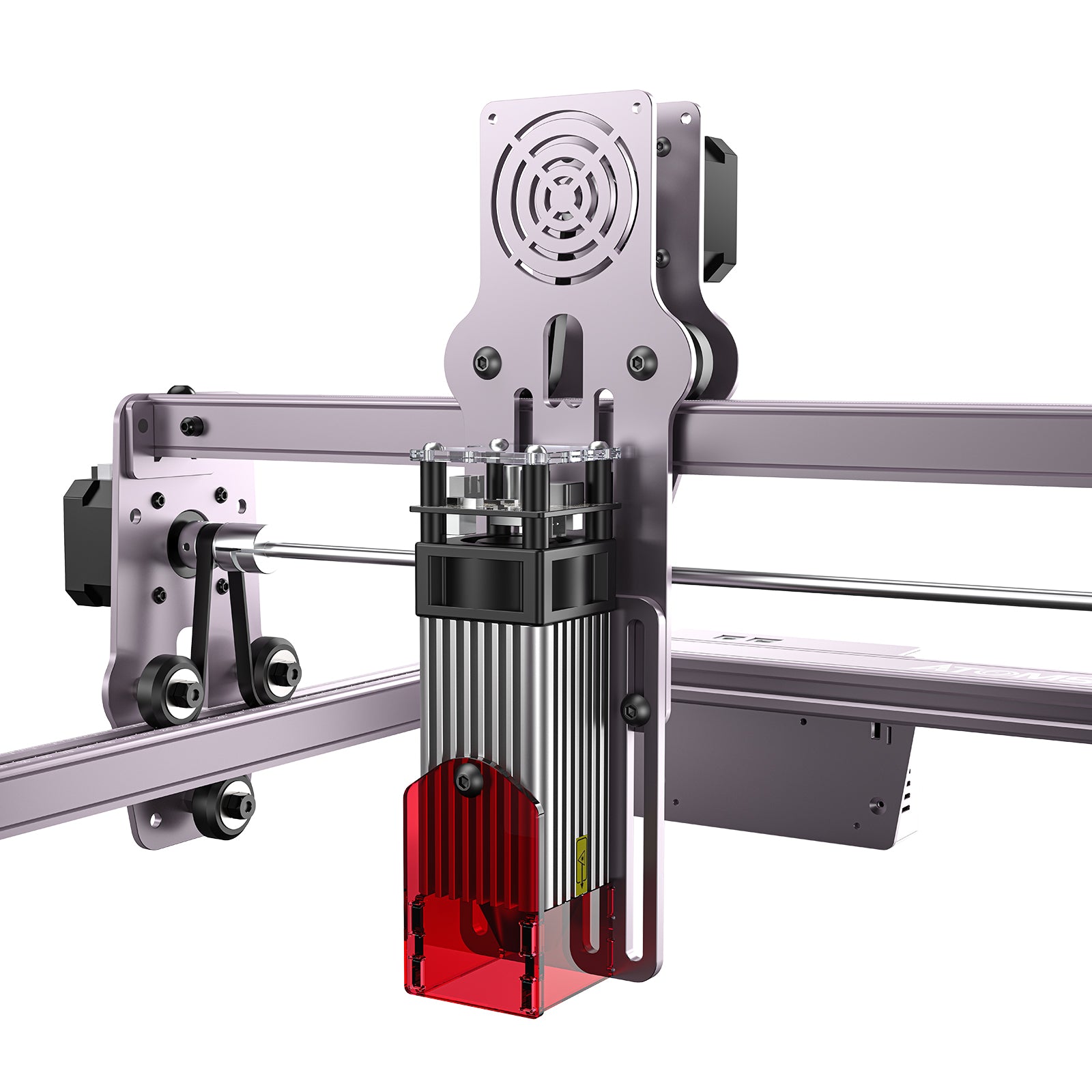

      • Fixed-focus laser:No need to rotate lens to focus, the focal length of the laser is a fixed value, move the lens up and down close to the surface of the object to start carving.
      • High-energy, ultra-fine laser:laser power is 4.5-5W, ultra-fine laser focal area is reduced to 0.23mm^2, high-density laser can easily cut 12mm thick wood, black acrylic; can directly engrave smooth stainless steel metal, ceramics .
      • Wide compatibility:The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support MACs system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.

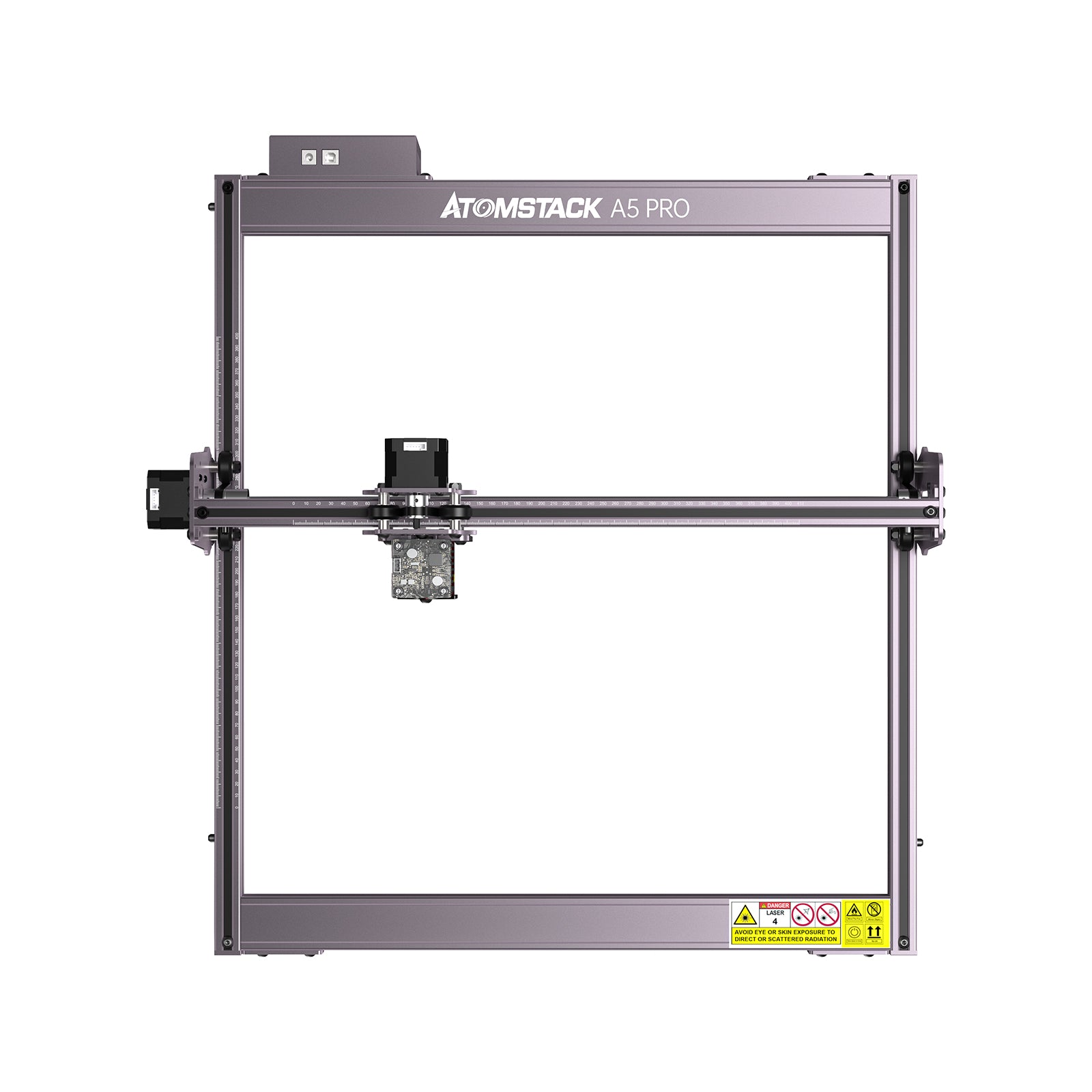

      • Precise scale lines axis: There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 410x400mm large area engraving interval can meet your various engraving needs.
      • Integrated stepper motor and shaft: The machine uses an integral screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the laser movement more precise and the coupling more durable.

        Specification:

        Item model number

        ATOMSTACK A5 PRO

        Print Size

        Recommend Print Size 410*400mm

        Carving Objects

        All wood, bamboo, paper, plastic, leather, PCB board, aluminum oxide, non-reflective plating and lacquered metal,ceramics(Should be painted black)

        Cutting Objects

        Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board.

        Laser power

        40W

        Laser output power

        5W-5.5W

        Wave Length

        445 ± 5nm

        Engraving accuracy

        0.01mm

        Focusing method

        Fixed focus laser, no need to focus

        Laser protective cover

        Protect the user's eyes and prevent pets from grabbing the laser spot.

        Operating software

        LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system.

        Input Format

        NC, BMP, JPG, PNG, DXF, etc.

        Data transmission method

        USB connection.

        Input Voltage

        AC100-240V, 50/60Hz

        Output Voltage

        DC12V, 5A

        Equipment net weight

        4.0kg

        Package weight

        5.2kg

        Equipment size

        570*600*270mm

        Packing size

        618*342*129mm

        Certification

        CE FCC RoHS FDA Weee



        Note:

        1. When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
        2. Please do not touch the laser emitter with your hand, or it may burn your hand.
        3. Please avoid strong impact on the machine.
        4. Children under 14 are not allowed to use this product and children over 14 need adult supervision.
        5. The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.

        Package Included:

        1 x

        X-axis assembly

        2 x

        Section 57CM

        2 x

        Section 48CM

        1 x

        Control box

        3 x

        Support legs

        1 x

        Goggles

        1 x

        Laser

        1 x

        24V2A power adapter

        1 x

        Power cord

        1 x

        USB cable

        Step 1~5

        Installation package

        1 x

        M5 wrench

        10 x

        Rolled belt

        3 x

        Small wood

        1 x

        focal length film

        1 x

        M3 wrench

        1 x

        Marker

        1 x

        Brush

        3 x

        Small acrylic
