About this item

• 【Independent Dual Extruder Design】Our TL-D3 Pro dual extruder 3D printer has dual nozzles independent of each other, so you can print in dual material/duplication/mirror mode. With dual material printing mode, you can get two color models. Choose duplication or mirror mode, you can get two models of the same color or different colors.

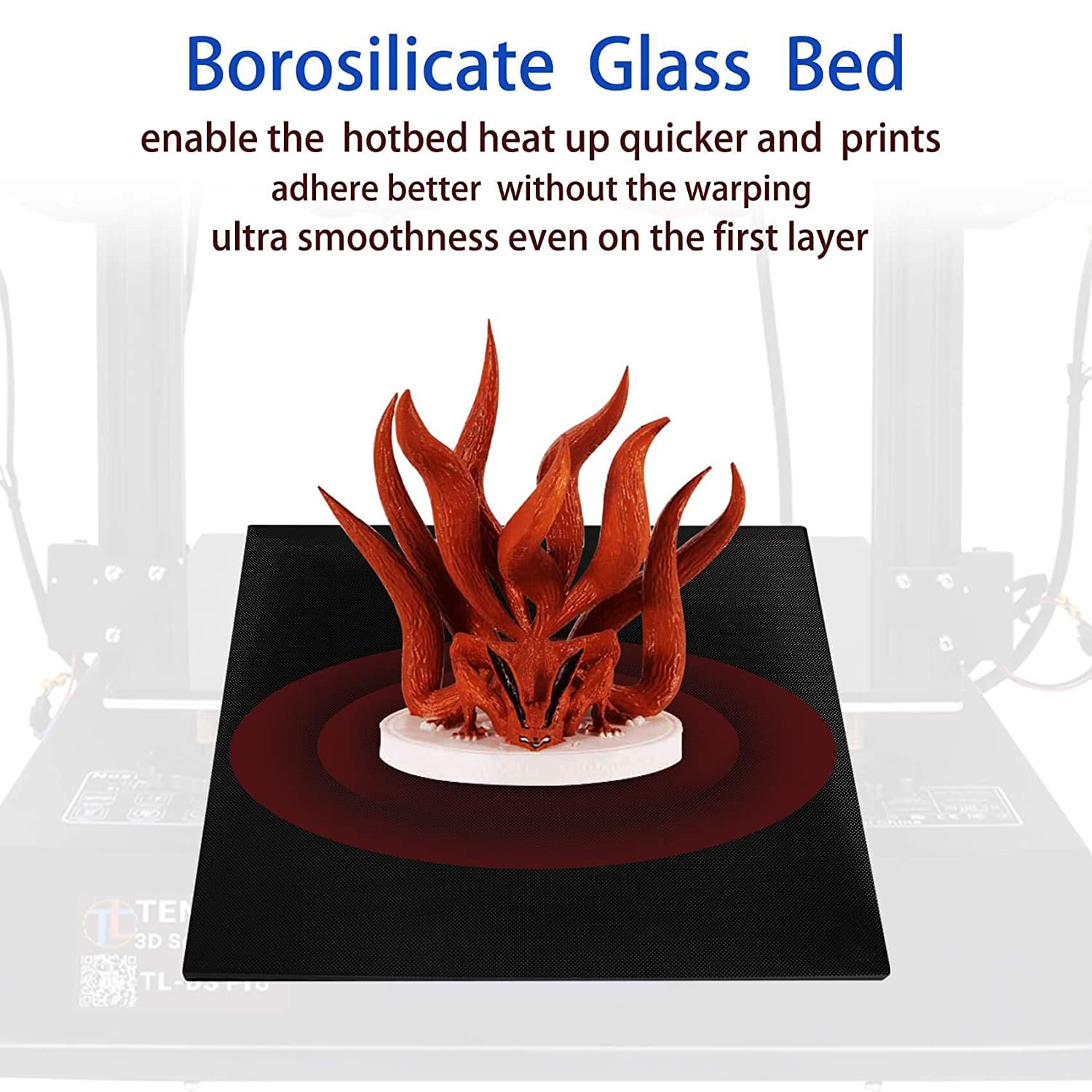

• 【Upgrade Borosilicate Glass Bed】TENLOG upgrade borosilicate glass bed enable prints adhere better without the warping.ultra smoothness even on the first layer,the model can be Pick up by hand after cooling.
• 【Self-developed Silent Motherboard 】The TL-D3 Pro built-in self-developed silent motherboard tmc2209 driver, which has stronger anti-interference, faster and more stable motion performance, silent printing and low decibel operation.
• 【Easy to Assemble】It comes with several assembled parts. You can assemble the 3D printer in 3 steps, with its user manual, in about 5 minutes.
• 【Metal scraper】 when using dual-material mode, the metal scraper is afraid that it will wipe the remaining filament on the nozzle, so there is no need to use a Enable Ooze Shield and a Enable Prime Tower to print the dual-color mode.



TENLOG 3D professional brand manufacturer

TENLOG 3D was established in 2014 and is composed of professional software TENLOG ZHANG, hardware engineer TENLOG Ma, and TENLOG YANG with more than 10 years of research and development experience.

TENLOG have developed a independent dual extruder TL-D3 Pro, Hands 2 Pro,TL-D5,TL-D6 and DLP 3d printer.

TENLOG Independent Dual Extruder 3D Printer

Specification

Printing Speed: 10-150mm/s, Recommended 30-60mm/s

Input: AC 100-240V 50-60Hz

Output: DC 24V 15A

Layer Thickness: 0.1-0.4mm

Nozzle diameter: 0.4mm

Additive manufacturing accuracy: ±0.1mm

File Format: STL, Jpq, G-Code

Max Nozzle Temperature: 300℃

Max Hot bed Temperature: 110℃

• Modeling Technology: FDM (Fused Deposition Modeling）
• Power Supply: 600W UL certified power supply

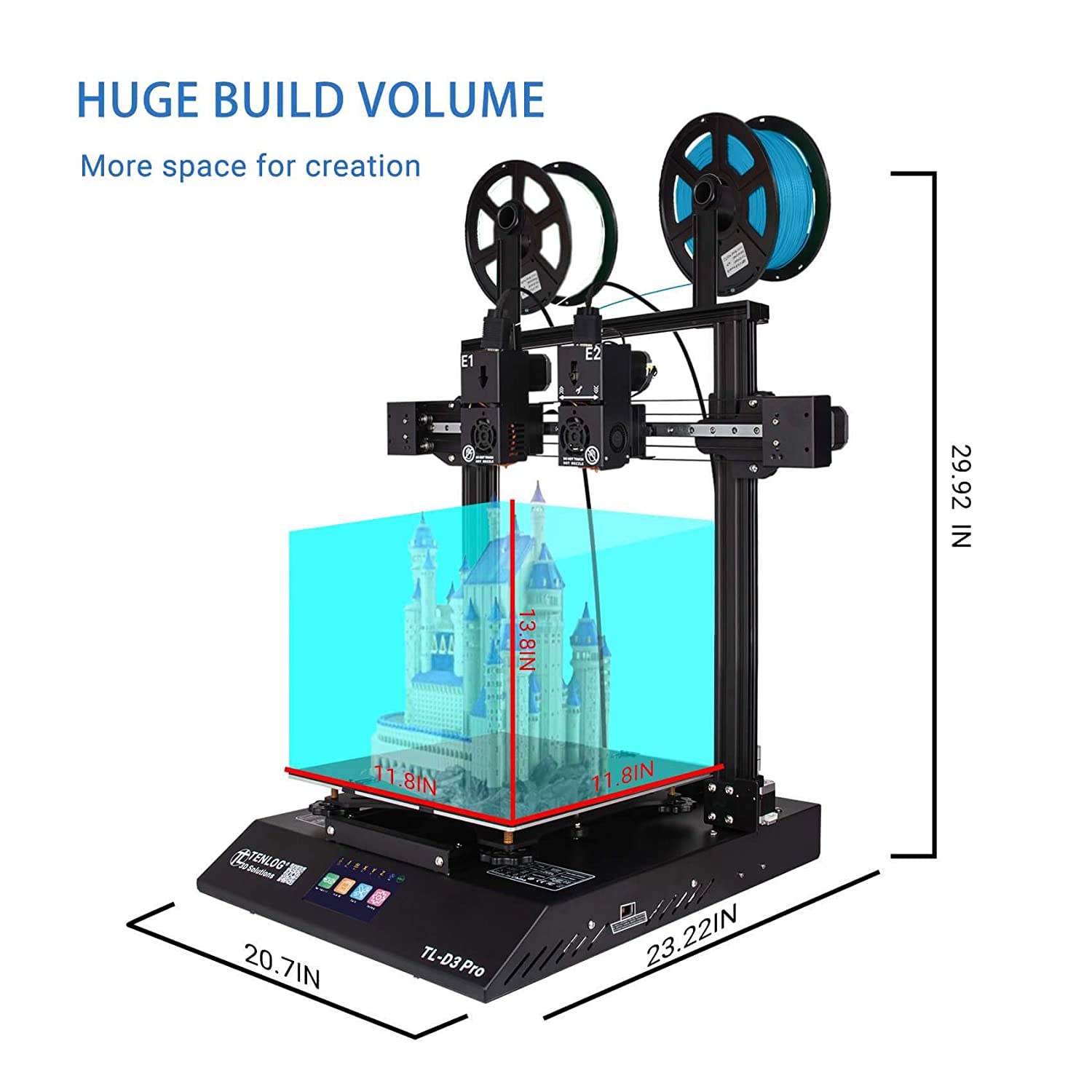

• Printing Size: 300*300*350mm /11.8''x11.8''x13.8''

Three Printing Modes

Dual Material Printing You can use two colored filaments to print on the model to obtain two-color models, or use two different filaments to print soluble supports (such as PVA) to accurately achieve difficult-to-place models.	Duplication Mode Printing You can print two identical models of filaments (or the same or different filaments) of the same color or different colors on the TENLOG 3D printer at the same time, thereby doubling the printing efficiency and saving you time!	Mirror Mode Printing You can print two symmetrical models of filaments (or the same or different filaments) of the same color or different colors on the TENLOG 3D printer at the same time,the two nozzles are dual-driven at all times for printing, and the two models are immediately aligned with the mirror.

Dual Material Printing

You can use two different filaments to print soluble supports (such as PVA) to accurately achieve difficult-to-place models.

Dual Material Printing



Put in water



Support melts

Resume Printing Function In the event of an unexpected power outage or surge, the control board will remember the last recorded position of the extruder. After the power is restored, The 3D printer will resume printing from the last recorded position.	Filament Runout Detection When the filament runout detection detects that the filament such as PLA or ABS are used up or broken, the 3D printer will save the information and suspend printing, waiting for the 3D printer to feed the filament again to continue printing.	Upgrade borosilicate glass bed TENLOG upgrade borosilicate glass bed enable prints adhere better without the warping.ultra smoothness even on the first layer,the model can be Pick up by hand after cooling.	Unique near-end and direct drive design TENLOG 3D Printer uses a direct drive extruder and a powerful near-end silent motor design,so that it can print various filament,such as TPU,PVA,PLA,ABS,HIPS,WOOD,PETG,flexible.Nylon

	TL-D3 Pro(TMC2209)	TL-D3 Pro(TMC2208)	Hands 2 Pro (TMC2209)	Hands 2 Pro (TMC2208)	310mm Borosilicate Glass Bed for TL-D3 Pro
Print size	11.8''x11.8''x13.8''	11.8''x11.8''x13.8''	8.6''x8.6''x9.8''	8.6''x8.6''x9.8''
Driver	TMC2209	TMC2208	TMC2209	TMC2208
Glass bed type	Borosilicate Glass Bed	Borosilicate Glass Bed	Borosilicate Glass Bed	Borosilicate Glass Bed
Filament Runout Detection	✓	✓	✓	✓
Resume Printing Function	✓	✓	✓	✓
Touch Screen Size	4.3''	4.3''	3.5''	3.5''
Power supply	600W	600W	360W	360W
Max Hot bed Temperature	110℃	110℃	110℃	110℃
Max Nozzle Temperature	300℃	300℃	300℃	300℃
